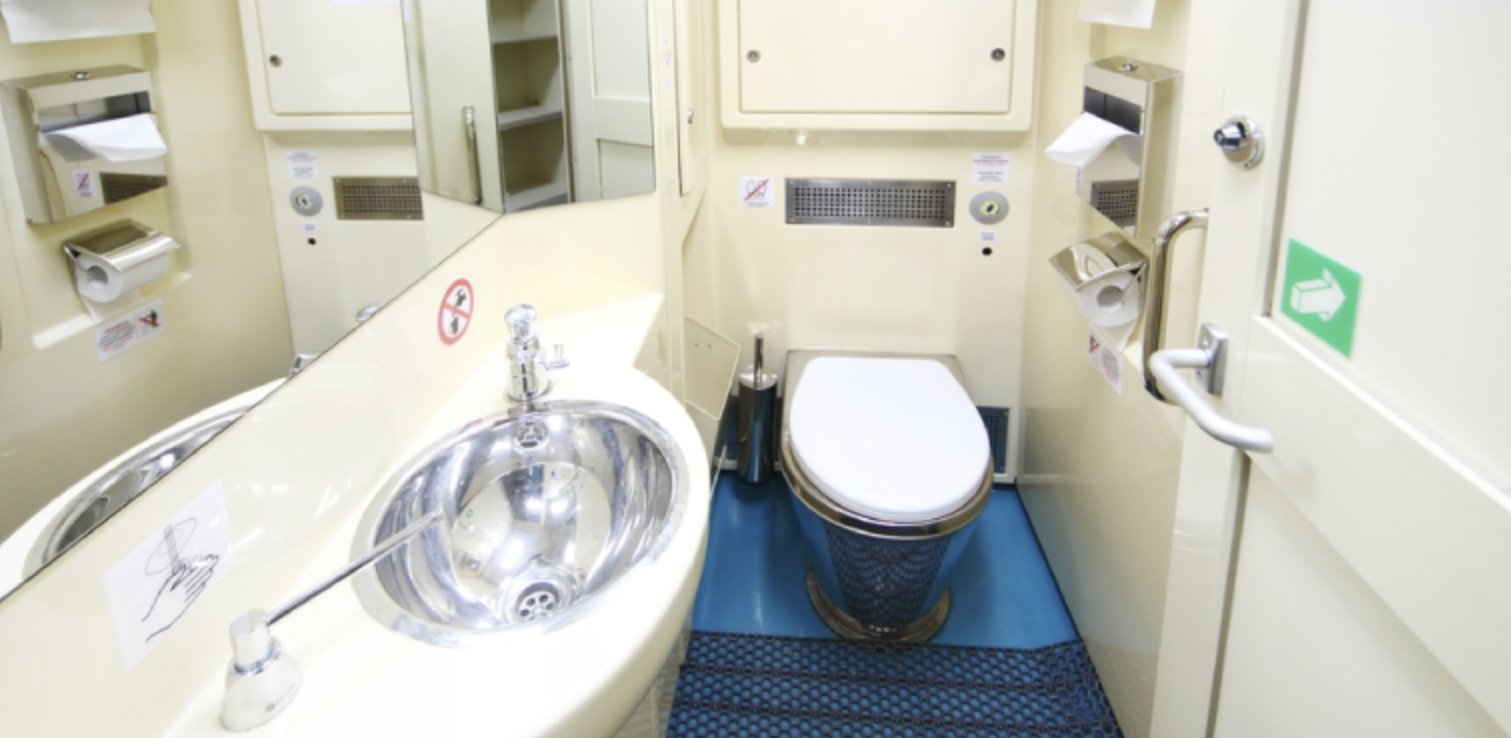

GenX SynerTech manufactures advanced Vacuum Toilet Systems designed for buses, railways, portable sanitation units, smart city infrastructure, public toilets, and industrial applications. These systems use low-water vacuum flushing technology to provide hygienic, odour-free, eco-friendly, and efficient sanitation solutions.
Uses just 0.5–1.0 litres per flush versus 6–10 litres in conventional toilets — dramatically saving water and reducing tank weight.
Pressure-differential technology creates powerful suction to move waste efficiently through the sealed pipe network into the holding tank.
Fully sealed holding tank and vacuum flushing action eliminate odour and spillage, even on rough roads and during long journeys.
Medical-grade cleanliness with sealed waste transfer that prevents contamination, ensuring a safe and sanitary experience every time.
Space-optimized design fits tight vehicle layouts — sleeper buses, AC coaches, and modular cabins — without compromising functionality.

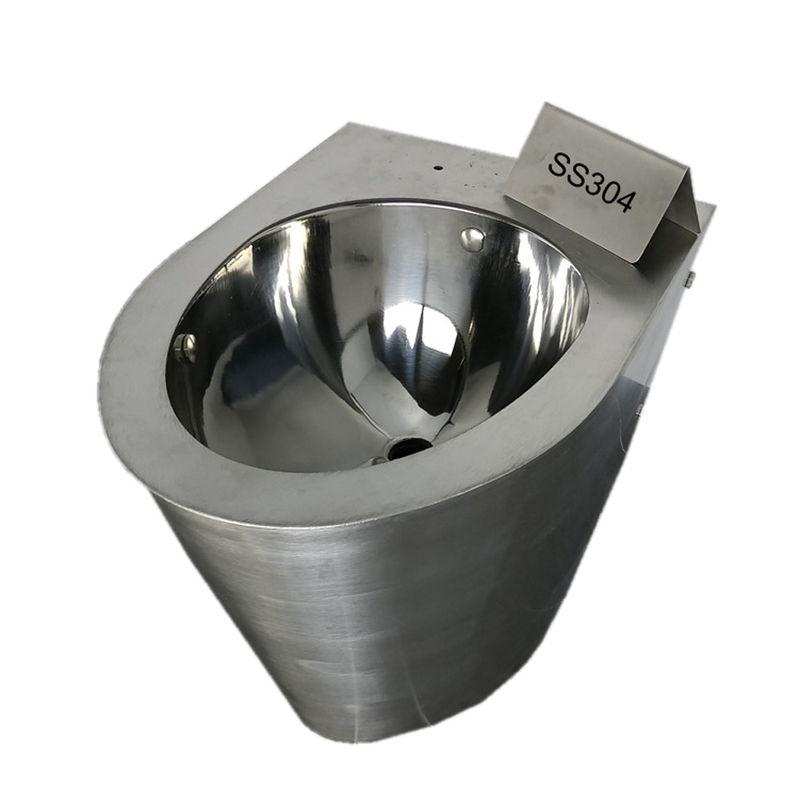

Stainless steel SS-304 bowl and corrosion-resistant components built for years of heavy commercial use in demanding environments.
Quick-access service points and modular components allow fast maintenance turnaround with minimal downtime.
Reduced water consumption and bio-digester compatibility make these systems environmentally responsible and sustainability-forward.
Equally suited for moving vehicles and fixed installations — from buses and trains to public toilets and remote site cabins.
Ready for IoT integration with smart monitoring systems, automatic sensors, and touch-free operation for modern smart city deployments.
| Flush Volume | 0.5 – 1.2 litres per flush |
|---|---|
| Water Saving | Up to 99% vs conventional |
| Vacuum Level | -0.5 to -0.6 bar |
| Bowl Material | SS-304 stainless steel |
| Holding Tank | 100 – 500 litres (customizable) |
| Power Supply | 12V DC / 24V DC / 220V AC |
| Vacuum Generator | Pneumatic ejector / electric pump |
| Waste Pipe Diameter | 50 mm (vs 110 mm conventional) |
| Temperature Range | -10°C to +55°C |
| Compliance | IS / BIS standards, Railway RDSO |
ICF, LHB, and Vande Bharat trains
Sleeper and AC intercity coaches
Underground and elevated stations

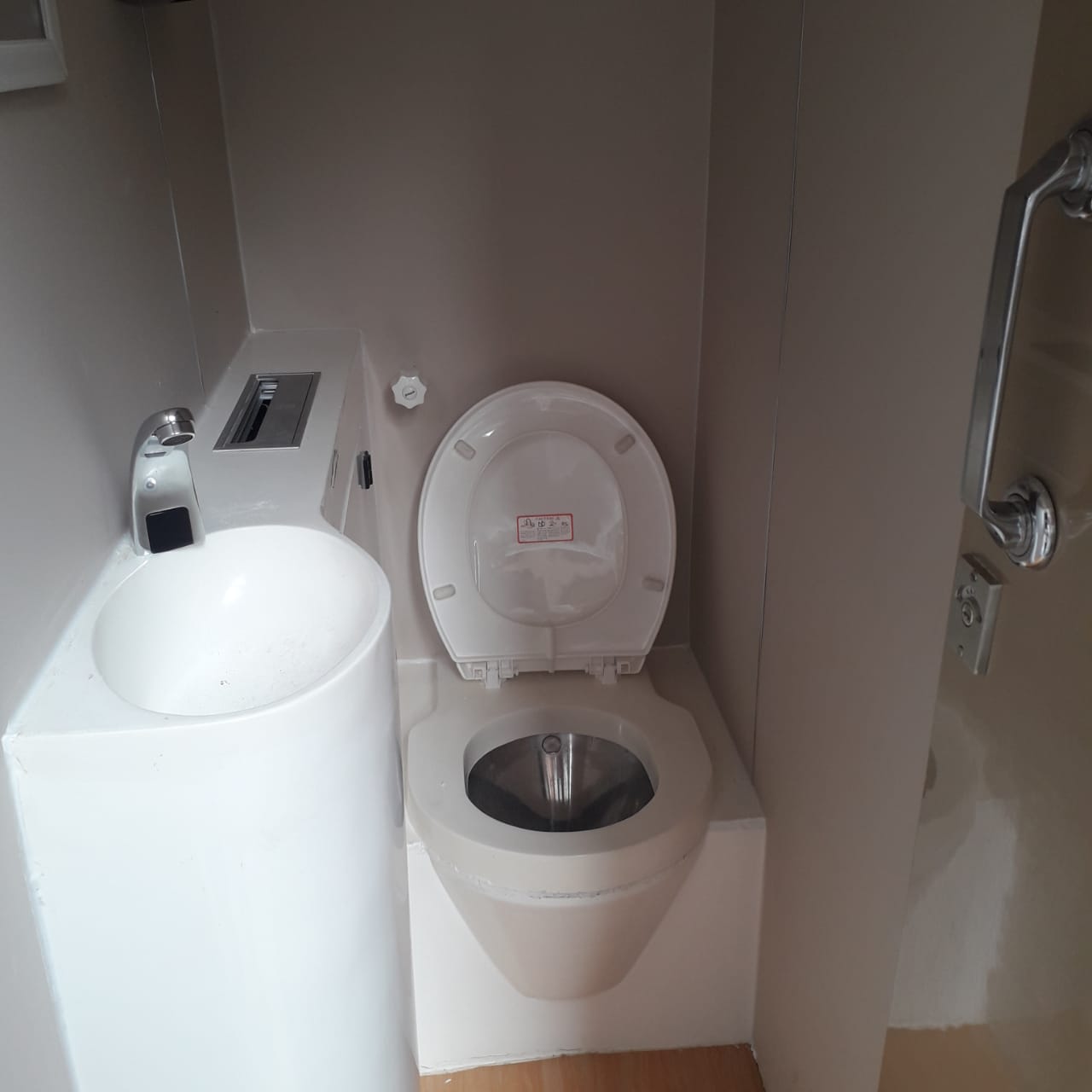

Construction site and event toilets
Marine sanitation systems
Smart city public toilets
Talk to our engineering team about specifications, customization, and delivery for your city or project.
